If the main computer is on Windows 10, we will need to adjust some settings to successfully share your files.

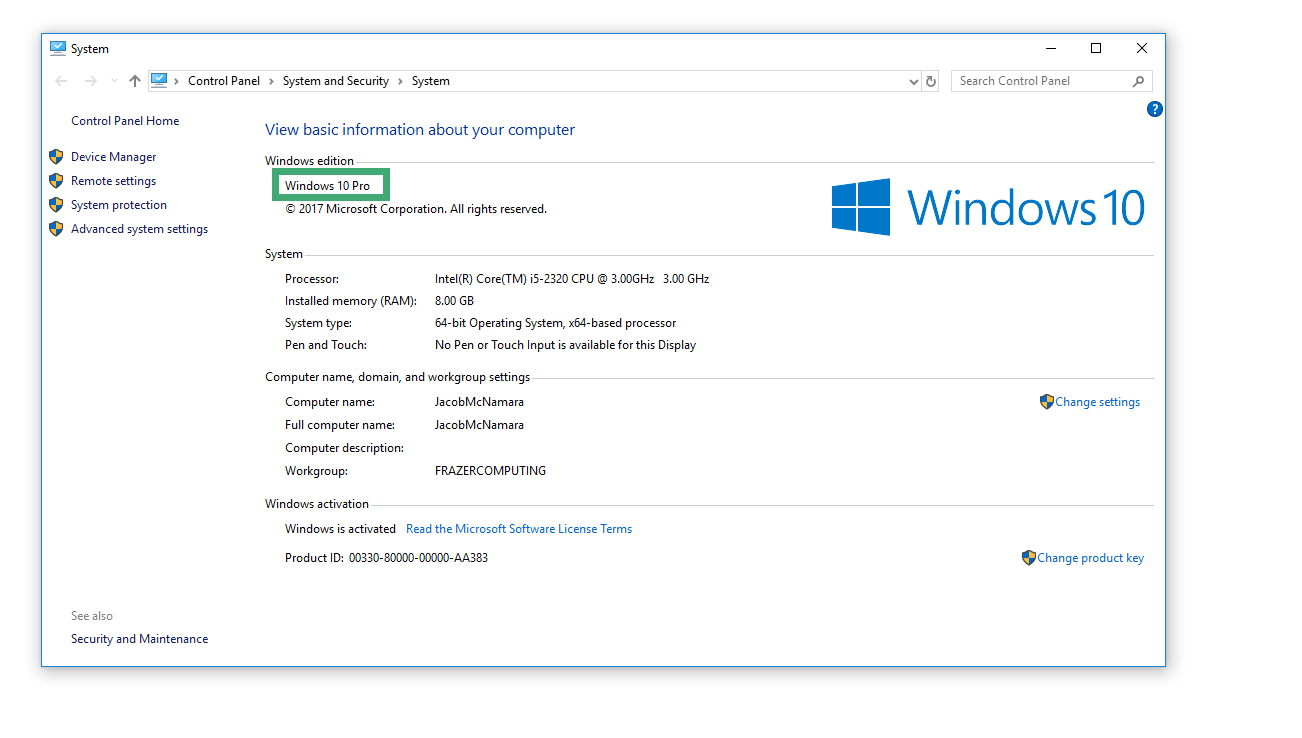

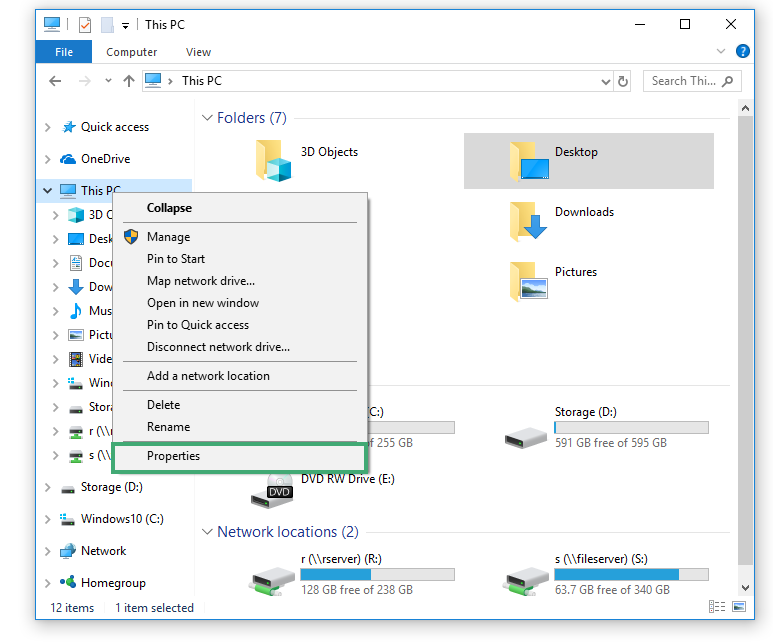

If you don’t know what version of Windows you have, open File Explorer and right click on “This PC” or “My Computer” and then go down and click on properties. Your edition of windows will be displayed on that page.





windows10svr1

windows10svr2





Navigate to the lower left hand side of your screen and click on the “Type here to search” bar.
windows10svr3





Type “control” and click on the Control Panel Icon that looks like this.





windows10svr4







windows10svr5

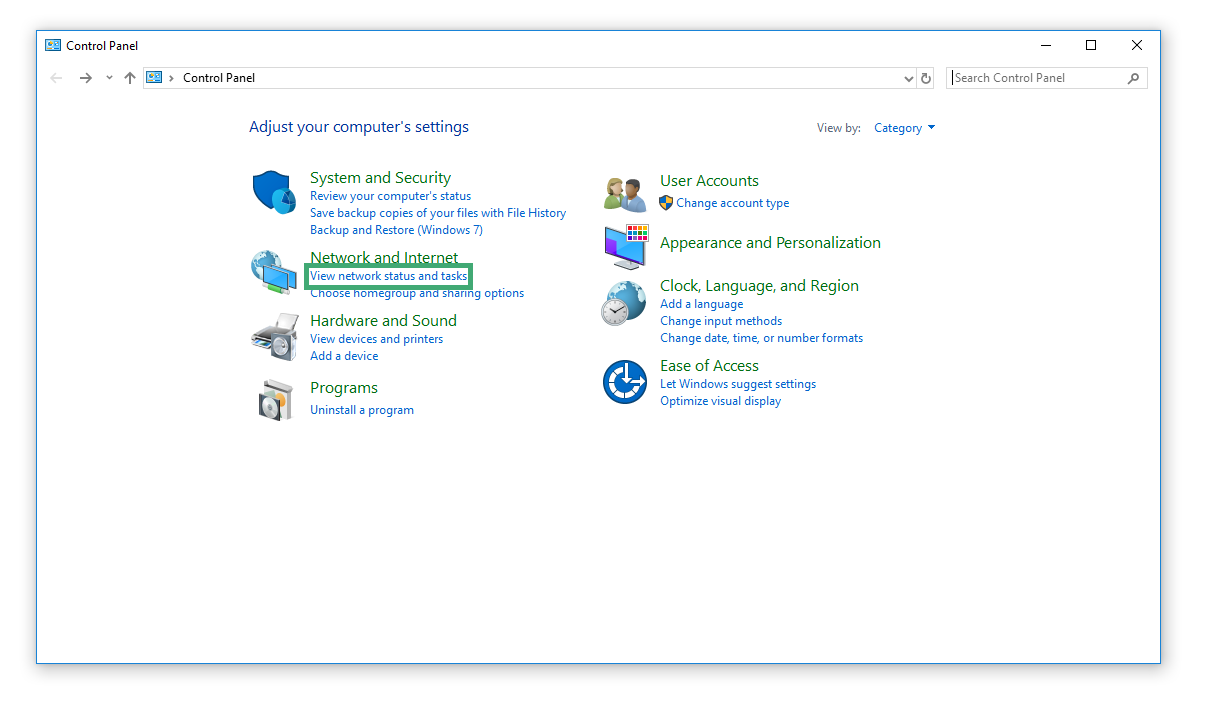

Look below Network and Internet and Click on “View network status and tasks”

windows10svr6

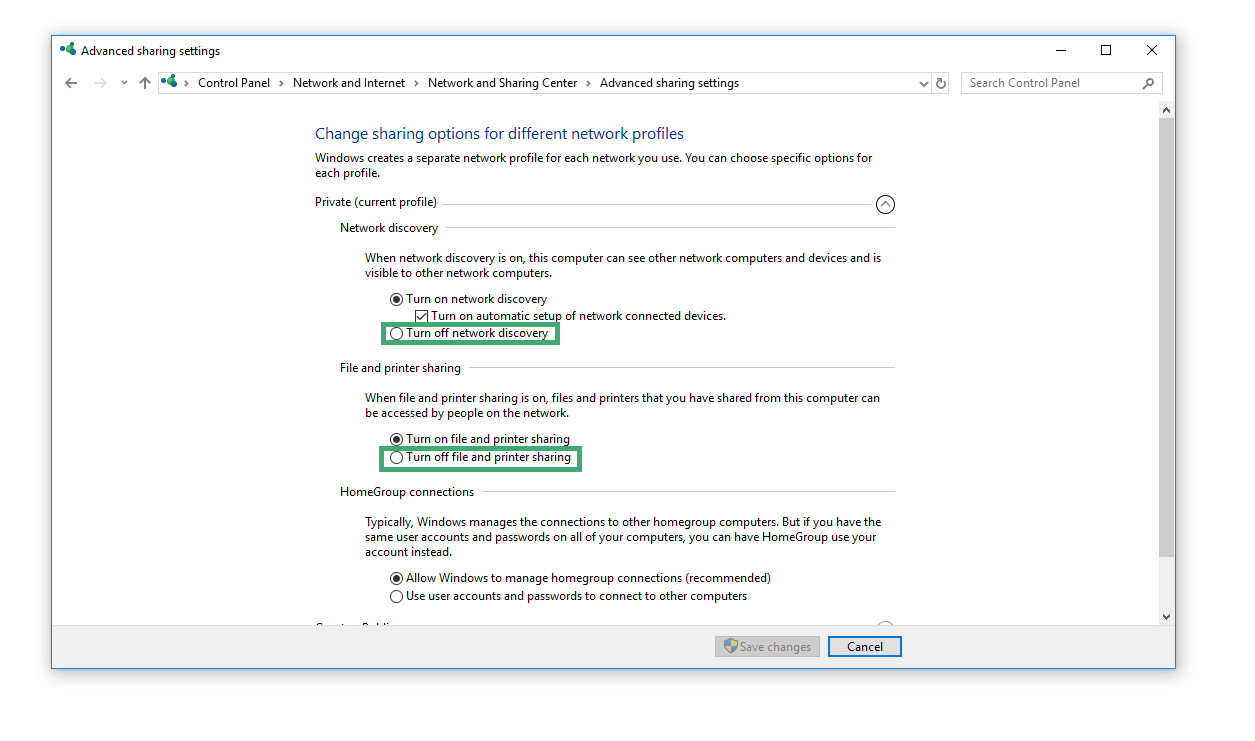

Click advanced sharing settings



windows10svr7

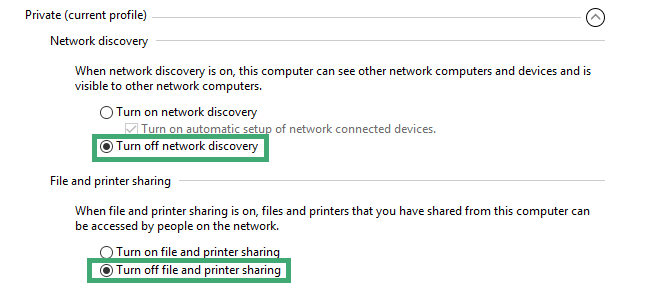

Select “Turn off network discovery” under Network Discovery and “turn off file and printer sharing“ under File and Printer Sharing. Do this under both the Private and Guest or Public drop down.

windows10svr8

Scroll all the way to the bottom under All Networks and Password protected sharing. Select “Turn off password protected sharing”.



Hit the “Save changes” button on the bottom of the window to save those settings.



Open File explorer from the folder icon on the start menu. windows10svr9



windows10svr10

Click Network on the left hand side.



windows10svr11

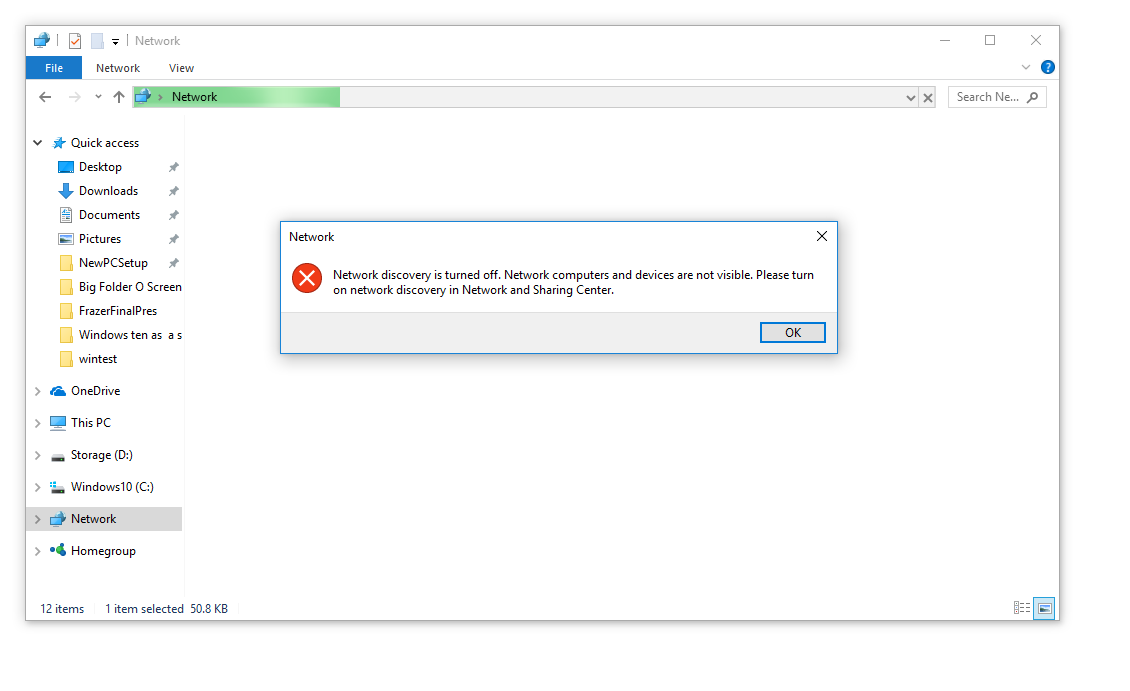

Click ok



windows10svr12

windows10svr13

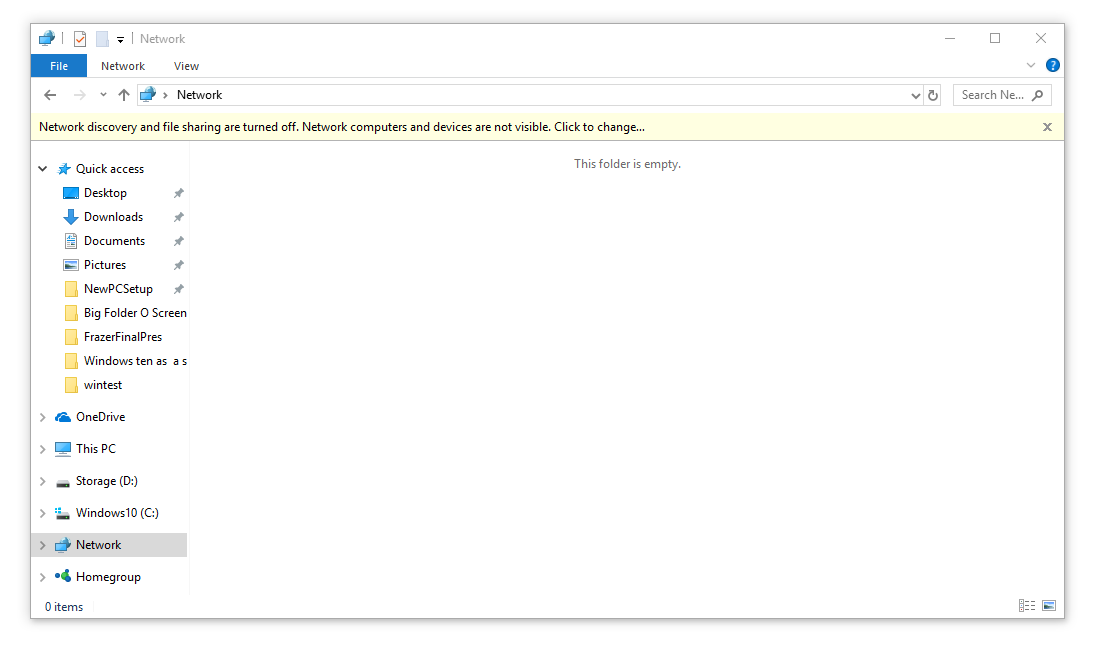

Click on the yellow banner along the top of the window.



windows10svr14

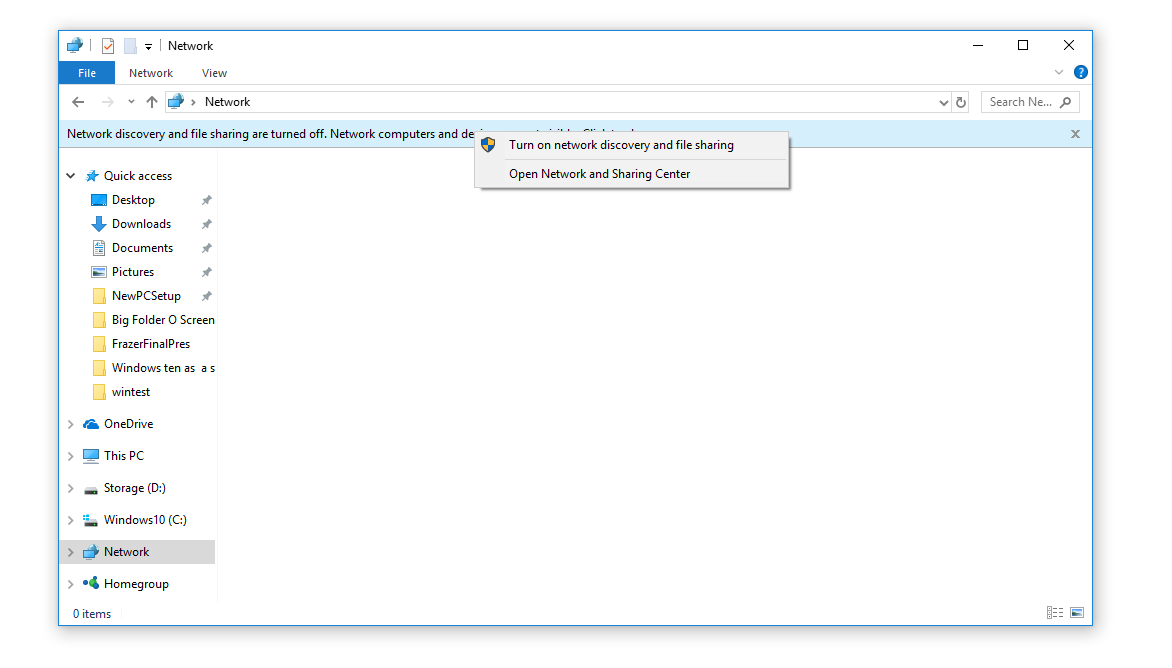

Click Turn on network discovery and file sharing

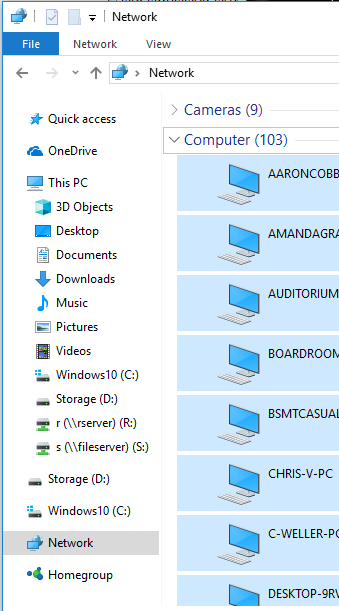

windows10svr15

You should see computers and devices begin to show up in that window.

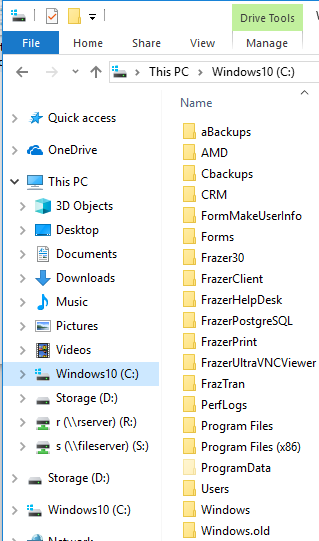

Now go to the C: Drive on the PC and right click on the Frazer30 folder


windows10svr16

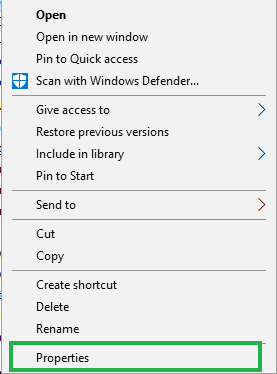

Go to Properties



windows10svr17

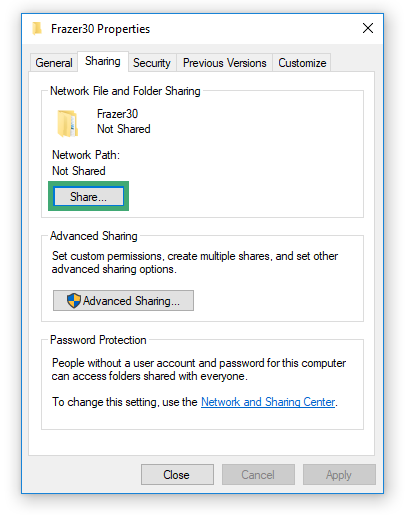

Click on the Sharing tab and then click on Share

windows10svr18

windows10svr19

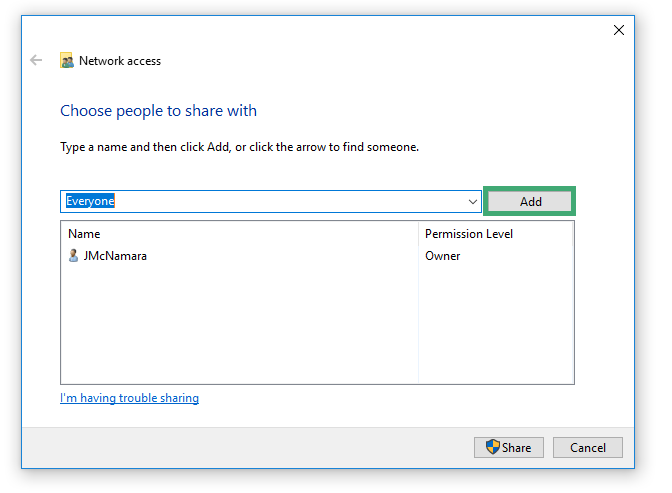

Type Everyone and click on Add. Under permission level, choose the drop-down option for Read/Write. Click Share

windows10svr20

windows10svr21







Click Share



windows10svr22

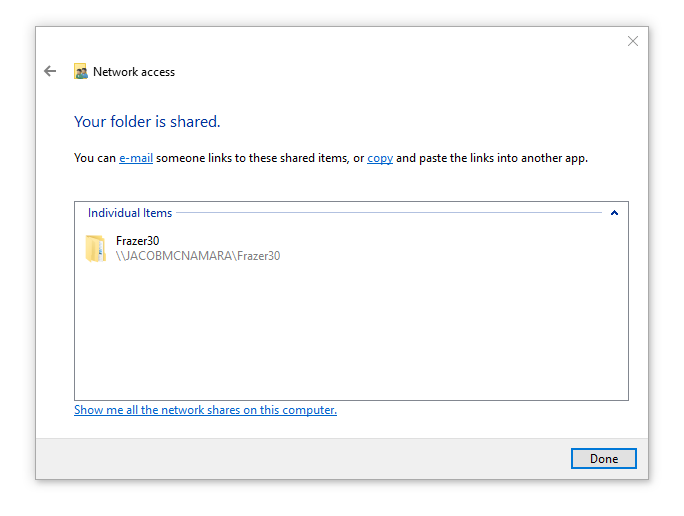

Click Done



windows10svr23

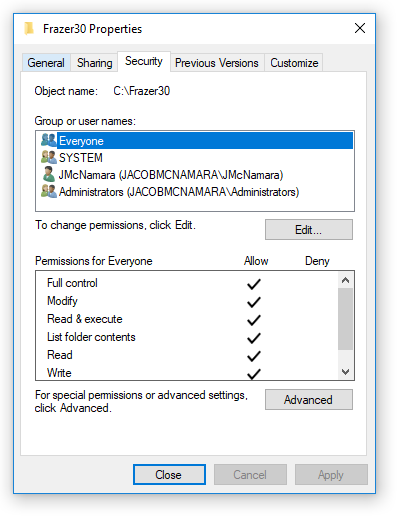

Switch to the Security Tab of the properties window, and see that Everyone has full control  allowed. Then click Close





After the Frazer30 folder is shared, we can use the location of it to Add a Frazer Client.
